Compact and lightweight: Comparing with the regular product, it is compact (reduced to MAX 95mm) and lighter (weighted MAX 4.5kg). It’s more stable to reduce the burden of the machinery at high speed turning. The largest bore: Comparing with the regular product, it has about 20% larger bore diameter for utilizing the capacity of machinery. The safety structure: It can retain the gripping force by check valve which prevents the workpiece from flying out when the pressure declining sharply. Reduce the weight of the spindle.

Feature:

Depending on the model, it can provide the function of air injection or water injection
The safety structure: It can retain the gripping force by check valve which prevents the workpiece from flying out when the pressure declining sharply. Reduce the weight of the spindle

Specification:

SPEC Model	Piston Dia (mm)	Piston Area (cm2) Push Side/Pul Side	Max.DrawBarFo rce KN(kgf) Push Side/Pul Side	Piston Stroke (mm)	Max Operating Pressure MPa (kgf/cm2)	Max. Speed (r.p.m.)	Moment of Inertia 1 (kg-m2)	Weight (kg)
M0926A	90	53.2/48.3	19.9(2029)/18 (1835)	10	4.0(40.8)	8000	0.006	5.7	3.0
M0928A	90	53.2/48.3	19.9(2029)/18 (1835)	10	4.0(40.8)	8000	0.006	5.5	3.0
M1036	105	71/68.5	26(2651)/25(2 549)	15	4.0(40.8)	8000	0.011	8.6	3.0
M1038	105	71/66	26(2651)/24.5 (2498)	15	4.0(40.8)	8000	0.011	8.5	3.0
M1236	125	100/89	38(3875)/33(3 365)	15	4.0(40.8)	7000	0.019	13	3.0
M1246	125	100/89	38(3875)/33(3 365)	15	4.0(40.8)	7000	0.019	12	3.0
M1546	155	161/154	60(6118)/57.8 (5894)	22	4.0(40.8)	6200	0.056	18	3.9
M1552	155	161/150	60(6118)/56(5 710)	22	4.0(40.8)	6200	0.052	16.8	3.9
M1768	175	184/183	69.3(7067)/69 (7036)	25	4.0(40.8)	4700	0.096	27.5	4.2
M1870	180	198/183	74(7546)/69(7 036)	25	4.0(40.8)	4700	0.095	26.5	4.2
M1875	180	198/183	74(7546)/69(7 036)	25	4.0(40.8)	4700	0.095	26	4.2
M1878	180	198/183	74(7546)/69(7 036)	25	4.0(40.8)	4700	0.095	25.5	4.2
M2078	205	262/234	98(9993)/88(8 973)	23	4.0(40.8)	3800	0.15	36.5	4.5
M2085	205	252/234	94(9585)/88(8 973)	30	4.0(40.8)	3800	0.15	37.5	4.5
M2091	205	252/234	94(9585)/88(8 973)	30	4.0(40.8)	3800	0.15	37	4.5
M2511s	250	348/336	124(12644)/12 0(12236)	23	4.0(40.8)	2800	0.41	53	7.0

Tags:

UR10e Cobot Robot Arm,

Universal Cobot Robot Arm,

3 Axis CNC Machine Robot Arm

Kitagawa High Precision Ultra-Large Through-Hole High-Speed Power Chuck

Contact Now

Auto-Strong Rotary Hydraulic Cylinder High Speed Through-hole Rotary Hydraulic Cylinder

Contact Now

Auto Strong 3-Jaw Through-Hole Power Chuck High-Quality SCM440 Standard Power Chuck

Contact Now

3 Axis CNC Machine With Collaborative Robot Arm UR10e Cobot For High Precision Milling

Contact Now

Universal UR10e Cobot Robot Arm With Sodick 3 Axis CNC Machine For Automation High Speed Milling

Contact Now

PRODUCTS DETAILS

Products

Industrial Robot Arm

Welding Robot Arm

Palletizing Robot Arm

Collaborative Robot

CNC Machine

Robot Linear Track

Robot Positioner

Robot Protective Covers

Robot Dress Pack

Robot Arm Gripper

Handling Robot Arm

Assembly Robot Arm

Pick Place Robot

Painting Robot Arm

Polishing Robot

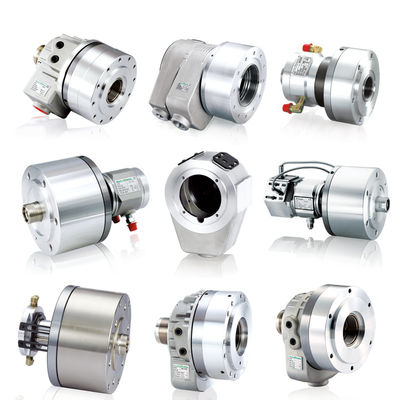

Auto-Strong Rotary Hydraulic Cylinder High Speed Through-hole Rotary Hydraulic Cylinder
