| MOQ: | 1 |
| Price: | negatiation |
| Standard Packaging: | automatic robot and 6 axis robot controller KUKA KR 60-3 robot arm with KUKA smartPAD Teach pendant packed with |
| Delivery Period: | 4-12 week |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 50 |
smart robot KR 70 R2100 PA pallets robotics gripper KUKA industrial robot
Product description
| Product name | smart robot KR 70 R2100 PA pallets robotics gripper KUKA industrial robot |
| Model | KR 70 |
| Max.reach | 2,100 mm |
| Rated payload | 70 kg |
| Rated suppl. load, arm/link arm/rot. column | 35 kg/–/– |
| Rated total load | 95 kg |
| Pose repeatability | ±0.06mm |
| Numberof axes | 6 |
| Mounting position | Floor |
| Variant | – |
| Robot footprint | 603 mm x 480 mm |
| Weight (excluding controller), approx. | 536 kg |
| Axis data / | Speed with rated |
| Range of motion | payload 30kg |
| Axis 1 (A1) | +/-185° |
| Axis 2 (A2) | +35°/-135° |
| Axis 3 (A3) | +158°/-120° |
| Axis 4 (A4) | +/-350° |
| Axis 5 (A5) | +/-119° |
| Axis 6 (A6) | +/-350° |
| Operating conditions | |
| Ambient temperature | +10°C to +55°C |
| Protection rating | |
| Protectionrating, robot | IP 65/IP 67 |
| Protection rating, in-line wrist | IP 64 |
| Controller | KR C4 |
| Teach pendant | KUKA smartPAD |

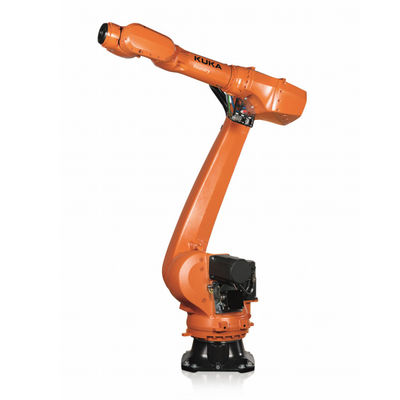

Product image
Company Information
FAQ
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
