| MOQ: | 1 set |
| Standard Packaging: | ONE 6 axis robot arm YASKAWA AR1440 for robot arm welding 12kg Payload 1440mm arm industrial robot packing with fumigation wooden frame, WG:405KG Controller and other parts packing with brown box, WG:75KG Total WG:480KG(>VG) |
| Delivery Period: | 30 work days |
| Supply Capacity: | 5 sets per month |
Industrial robot arm YASKAWA AR900 for arc welders 7kg Payload 927mm arm welding robot
Main Specifications:
Model:AR1440
Maximum reach:1440mm
Maximum payload:12kg
Pose repeatability:± 0.06mm
Number of axes:6
Weight:150kg
| Product Name | Industrial robot arm YASKAWA AR900 for arc welders 7kg Payload 927mm arm welding robot |
| Model | AR1440 |
| Application | Arc Welding tasks |
| Maximum reach | 1440mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.06mm |
| Number of axes | 6 |
| Mounting position | Floor, Wall, Ceiling |
| Weight | 150 kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 170° to -170° |
| L | 155° to -90° |
| U | 155° tp -85° |
| R | 200° to -200° |
| B | 150° to -150° |
| T | 455° to -455° |

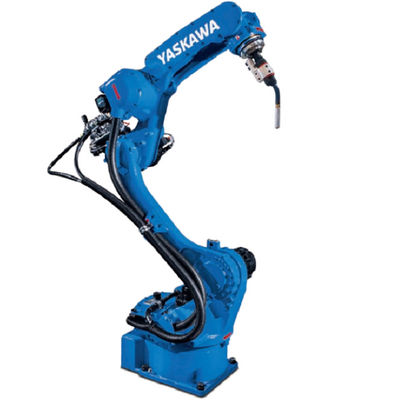

AR1440 Introduction:
The 6 axis MOTOMAN AR1440 robot provides fast and accurate performance to achieve optimal results in extremely difficult conditions and especially for the high demands of arc welding applications.
With a payload of up to 12 kg, it's wire feed system, the maximum working range of 1440 mm and integrated media hose package,this robot enables simple machining of bulky and hard-to-access workpieces with high quality results. Furthermore, the slim design allows high-density robot placement in confined spaces.
The fast motion sequences of the MOTOMAN AR1440 robot reduce welding cycle times and the hollow wrist of 50 mm allow integrated torch cabling in the robot arm in order to avoid collisions with the workpiece or other robots.
The integration of the power cable and the air connections in the base enable an enlarged turning range of more than 340°.
KEY BENEFITS
Fast motion sequences
Wide motion range
High path accuracy
High density placement due to slim design
Integrated cabling avoids interferences
Applications:
Welding and simple machining of bulky and hard-to-access workpieces
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
