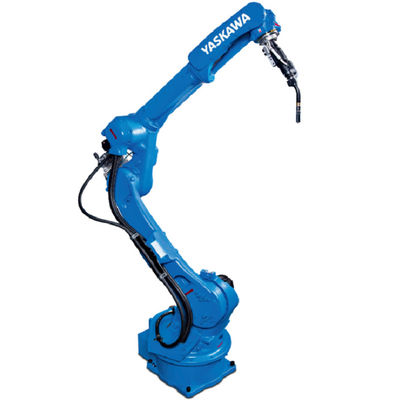

6 axis robot arm YASKAWA AR2010 for robot arm welding 12kg Payload 2010mm arm Industrial robot
Main Specifications:
Model:AR2010
Maximum reach:2010mm
Maximum payload:12kg
Pose repeatability:± 0.08mm
Number of axes:6
Weight:260kg
| Product Name | YASKAWA AR2010 industrial robot 6 Axis robot arm for robot arm welding 12kg Payload 2010mm Arm |
| Model | AR2010 |
| Application | Arc Welding tasks |
| Maximum reach | 2010mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.08mm |
| Number of axes | 6 |
| Mounting position | Floor, Wall, Ceiling |
| Weight | 260 kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 180° to -180° |
| L | 155° to -105° |
| U | 160° tp -86° |
| R | 200° to -200° |
| B | 150° to -150° |
| T | 455° to -455° |
AR2010 Introduction:
The 6-axis robot MOTOMAN AR2010 of our AR series, thanks to its high path accuracy, is an optimal robot for arc welding applications.
With a payload of up to 12 kg and a wide working range of 2010 mm this robot supports welding of bulky workpieces. Its hollow arm design enables leading the welding cables and wire feeding through the arm to the wrist, which saves valuable space around it. The MOTOMAN AR2010 allows easy programming and enables high freedom of motion.
The wire feeder can be mounted in the prepared space at axis 3, supporting short distance and centric supply of the welding wire to the weld torch. The streamlined, slightly bowed arm structure reduces the interference area between the jigs and work pieces.
The robot is controlled by the YRC1000 controller which facilitates both programming and use with a wide range of functions specially designed for arc welding applications.
KEY BENEFITS
Wide motion range
High path accuracy
Easy programming
Less interferences due to optimized design
Applications:
Welding and simple machining of bulky and hard-to-access workpieces
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
Video
Video
|
|
