| MOQ: | 1 set |
| Standard Packaging: | ONE Yaskawa large industrial total station robotic 6 axis YRC1000 material handling machine packing with fumigation wooden frame, WG:605KG Controller and other parts packing with brown box, WG:75KG Total WG:680KG(>VG) |
| Delivery Period: | 30 work days |
| Supply Capacity: | 5 sets per month |

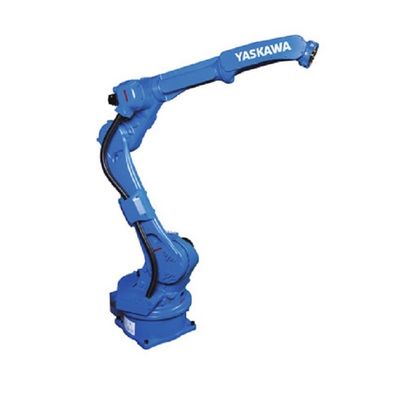

6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot
Main Specifications:
Model:GP25-12
Maximum reach:2010mm
Maximum payload:12kg
Pose repeatability:± 0.08mm
Number of axes:6
Weight:260 kg
| Product Name | 6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot |
| Model | GP25-12 |
| Application | Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place, |
| Maximum reach | 2010mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.08mm |
| Number of axes | 6 |
| Mounting position | Floor, Wall, Ceiling |
| Weight | 260 kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 180° to -180° |
| L | 155° to -105° |
| U | 160° tp -86° |
| R | 200° to -200° |
| B | 150° to -150° |
| T | 455° to -455° |
GP25-12 Introduction:
The MOTOMAN GP25-12 is a fast and precise 6-axis industrial robot with a payload capacity of up to 12 kg. With a even larger working range, which reach of 2010 mm and a high repeatability of ±0.08mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. The streamlined modern industrial design minimizes the space requirements at the installation site.
Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into the environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package. This reduces also interference contours.
A world of possibilities is open to the MOTOMAN GP25-12 robots with the numerous functions of the MOTOMAN YRC1000 controller. In conjunction with the conventional teach pendant, these robots are reliable mechanical engineering partners. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into industrial automation.
As standard, the MOTOMAN GP25-12 are designed with the high protection classification IP67(wrist). Other variants of the MOTOMAN GP25 (e.g. with food-compatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.
KEY BENEFITS
Flexible, fast and powerful
Large working range: 2010 mm
Reduced interference contours due to optimized design
Simple commissioning and maintenance
Applications:
Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place, IP67
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
Video
Video
|
|
| MOQ: | 1 set |
| Standard Packaging: | ONE Yaskawa large industrial total station robotic 6 axis YRC1000 material handling machine packing with fumigation wooden frame, WG:605KG Controller and other parts packing with brown box, WG:75KG Total WG:680KG(>VG) |
| Delivery Period: | 30 work days |
| Supply Capacity: | 5 sets per month |
6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot
Main Specifications:
Model:GP25-12
Maximum reach:2010mm
Maximum payload:12kg
Pose repeatability:± 0.08mm
Number of axes:6
Weight:260 kg
| Product Name | 6 axis robot arm Yaskawa GP25-12 pick and place machine 12kg Payload 2010mm Arm industrial robot |
| Model | GP25-12 |
| Application | Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place, |
| Maximum reach | 2010mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.08mm |
| Number of axes | 6 |
| Mounting position | Floor, Wall, Ceiling |
| Weight | 260 kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 180° to -180° |
| L | 155° to -105° |
| U | 160° tp -86° |
| R | 200° to -200° |
| B | 150° to -150° |
| T | 455° to -455° |
GP25-12 Introduction:
The MOTOMAN GP25-12 is a fast and precise 6-axis industrial robot with a payload capacity of up to 12 kg. With a even larger working range, which reach of 2010 mm and a high repeatability of ±0.08mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. The streamlined modern industrial design minimizes the space requirements at the installation site.
Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into the environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package. This reduces also interference contours.
A world of possibilities is open to the MOTOMAN GP25-12 robots with the numerous functions of the MOTOMAN YRC1000 controller. In conjunction with the conventional teach pendant, these robots are reliable mechanical engineering partners. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into industrial automation.
As standard, the MOTOMAN GP25-12 are designed with the high protection classification IP67(wrist). Other variants of the MOTOMAN GP25 (e.g. with food-compatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.
KEY BENEFITS
Flexible, fast and powerful
Large working range: 2010 mm
Reduced interference contours due to optimized design
Simple commissioning and maintenance
Applications:
Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place, IP67
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
