| MOQ: | 1 set |
| Standard Packaging: | ONE YASKAWA GP8 ACC industrial robot 6 Axis robot arm for pick and place in corrosive Environments machine packing with fumigation wooden frame, WG:205KG Controller and other parts packing with brown box, WG:75KG Total WG:280KG(>VG) |
| Delivery Period: | 30 work days |
| Supply Capacity: | 5 sets per month |

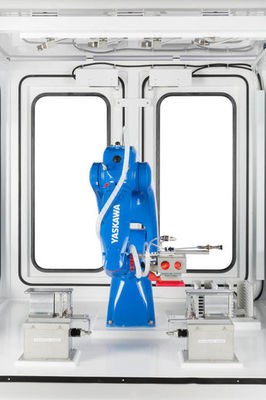

6 axis robot arm YASKAWA GP8 ACC pick and place machine in corrosive Environments 8kg Payload 727mm Arm industrial robot
Main Specifications:
Model:GP8 ACC
Maximum reach:727mm
Maximum payload:8kg
Pose repeatability:± 0.02mm
Number of axes:6
Weight:32kg
| Product Name | 6 axis robot arm YASKAWA GP8 ACC pick and place machine in corrosive Environments 8kg Payload 727mm Arm industrial robot |
| Model | GP8 ACC |
| Application | Handling & General Application in corrosive Environments |
| Maximum reach | 727mm |
| Maximum payload | 8kg |
| Pose repeatability (ISO 9283) | ± 0.02mm |
| Number of axes | 6 |
| Mounting position | Floor, Wall, Ceiling |
| Weight | 32kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 170° to -170° |
| L | 145° to -65° |
| U | 255° tp -113° |
| R | 190° to -190° |
| B | 135° to -135° |
| T | 360° to -360° |
GP8 ACC Introduction:
Increase Productivity
Highest payloads, speeds and wrist allowable moment in its class
• A variety of workpieces can be transferred and different grippers can be mounted with 8-kg payloads and 38 % greater allowable moment
• Speeds of all axes have been increased by 39 % (max)
• Acceleration/deceleration control has been improved to achieve maximum reduction of acceleration/deceleration times for all robot postures
Make Equipment compact
Slim and easy-to-use structure
• Slim robot body requires minimum installation space (minimizes L-U axis offset)
• The manipulator cable can be connected at the bottom section, which reduces interference with walls and requires far less installation space when compared with cable connections on the side of the robot
• Increased maximum reach and horizontal reach enables robots to operate in wider work areas
• The slim, straight, and symmetrical arm design minimize interference with peripheral devices even in small spaces
KEY BENEFITS
• Anti-Corrosive painting allows robot to be used in environments with corrosive atmosphere such as acids, alkali and vapors
• Drip proof design assures smooth disposal of a liquid on the robot surface
• Excellent resistance to oil and chemicals
• Good abrasion resistance
Applications:
Handling & General Application in corrosive Environments, IP67
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
