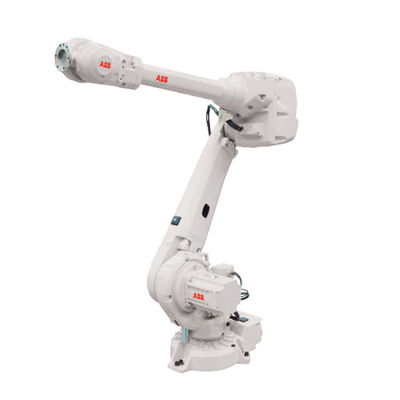

1727mm Height ABB Robot Arm Robotic Arm Welding Machine Standard IP67 Protection
  • name

1727mm Height ABB Robot Arm Robotic Arm Welding Machine Standard IP67 Protection

MOQ: 1 set
Standard Packaging: One robotic arm 6 axis reach 2050mm automatic welding robot IRB 4600-60/2.05 industrial robot for abb packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG
Delivery Period: 7 working days after deposit
Payment Method: T/T, L/C, Western Union
Supply Capacity: 50 sets /Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
ABB
Certification
CE
Model Number
IRB 4600-60/2.05
Product Name:
Robotic Arm 6 Axis Reach 2050mm Automatic Welding Robot IRB 4600-60/2.05 Industrial Robot For Abb
Axis:
6
Payload:
60kg
Reach:
2050mm
Armload:
20kg
Weight:
425 Kg
Height:
1727 Mm
Position Repeatability:
0.06mm
Controller:
IRC5 Single Cabinet
Mounting:
Floor, Shelf, Inverted Or Tilted
Minimum Order Quantity:
1 set
Packaging Details:
One robotic arm 6 axis reach 2050mm automatic welding robot IRB 4600-60/2.05 industrial robot for abb packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG
Delivery Time:
7 working days after deposit
Payment Terms:
T/T, L/C, Western Union
Supply Ability:
50 sets /Month
Highlight:

abb welding robot

,

robotic welding arm

Product Description

Robotic arm 6 axis reach 2050mm automatic welding robot

IRB 4600-60/2.05 industrial robot for abb



Specification

Specification
Axis 6
Payload 60kg
Reach 2050mm
Weight 425kg
Mounting Floor, shelf, inverted or tilted
Controller IRC5 Single cabinet
Armload 20kg
Height 1727mm
Position repeatability 0.06mm
Path repeatability 0.46mm
Protection Standard IP67, as option Foundry Plus 2
Working range
Axis 1 arm rotation +180° to -180°
Axis 2 arm +150° to -90°
Axis 3 arm +75° to -180°
Axis 4 wrist +400° to -400°
Axis 5 bend +120° to -125°
Axis 6 turn +400° to -400°


-

1727mm Height ABB Robot Arm Robotic Arm Welding Machine Standard IP67 Protection 01727mm Height ABB Robot Arm Robotic Arm Welding Machine Standard IP67 Protection 11727mm Height ABB Robot Arm Robotic Arm Welding Machine Standard IP67 Protection 2







Product Description



IRB 4600 Industrial Robot

IRB 4600 is a highly productive general purpose robot optimized for short cycle times where compact robots can help create high density cells. The IRB 4600 enables more compact manufacturing cells with increased production output and higher quality - and that means improved productivity.



Shortest cycle times
Thanks to the new compact and optimized design resulting in a low weight, the IRB 4600 can cut the cycle times of the industry benchmark by up to 25%. The maximum acceleration achievable is highest in its class, together with high maximum speeds. With the high acceleration it is possible to use to avoid obstacles or to follow the path. The benefit is increased production capacity and higher productivity.
Ultra-wide working range
You can position the IRB 4600 in the most favourable way with regard to reach, cycle time and auxiliary equipment. Flexible mounting with floor, tilted, semishelf or inverted mounting is very useful when you are simulating the best position for your application.
Compactness
The small footprint, the slim swing base radius around axis 1, the fine elbow behind axis 3, the small lower and upper arms, and the compact wrist all contribute to the most compact robot in its class. With the IRB 4600 you can create your production cell with reduced floorspace by placing the robot closer to the served machines, which also increases your output and your productivity.
Best protection available
ABB has the most comprehensive protection program on the market and it will be even further enhanced with the IRB 4600. Foundry Plus includes IP 67, resistant paint, rustprotected mounting flange and protection for molten metal spits on non-moving cables on the rear of the robot and extra protection plates over the floor cable connections on the foot.
Optimize and go sharp
To get the IRB 4600 ready for the targeted applications you have access to high performing workpiece positioners, track motions, and the motor and gear unit range.
To simulate your production cell to find the optimal position for the robot and program it offline, RobotStudio is available on subscription together with PowerPacs for several applications.
Learn more about how to use the IRB 4600 in your applications and environments - watch simulations on several applications at www.abb.com/robotics.
Main applications
• Arc Welding
• Assembly
• Material Handling
• Machine Tending
• Material Removal
• Cleaning/Spraying
• Dispensing
• Packing
• Laser Cutting
• Laser Welding



Company Information

1
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance



4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.



5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
