| MOQ: | 1 set |
| Standard Packaging: | ONE ABB large industrial total station robotic 6 axis IRB2600-12/1.65 material handling machine packing with fumigation wooden frame, Total WG:450KG(>VG) |
| Delivery Period: | 30-60 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 50 pieces per month |

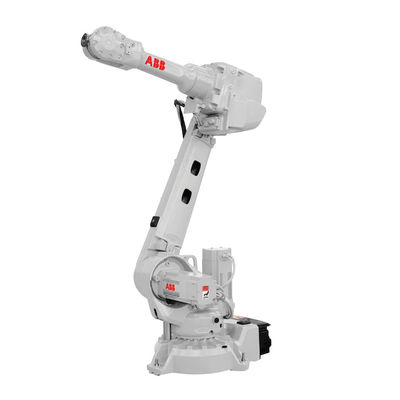

ABB IRB 2600 6 Axis Industrial Robot Arm Automatic Welding Robot
Specification
| Robot version | Reach(m) | Handing capacity(kg) | Wrist torque(Nm) | |||
| Axis 4&5 | Axis 6 | |||||
| IRB 2600-20/1.65 | 1.65 | 20 | 36.3 | 16.7 | ||
| IRB 2600-12/1.65 | 1.65 | 12 | 21.8 | 10 | ||
| IRB 2600-12/1.85 | 1.85 | 12 | 21.8 | 10 | ||
| Number of axes | 6+3external(up to 36 withMultiMove) | |||||
| Protection |
Standard IP67;optional |
|||||
| Mounting | Floor,wall,shelf,tilted,inverted | |||||
| Controller | IRC5 Single Cabinet | |||||
|
|
||||||
|
Position repeatability |
Path repeatability |
|||||
| IRB 2600-20/1.65 | 0.04mm | 0.13mm | ||||
| IRB 2600-12/1.65 | 0.04mm | 0.14mm | ||||
| IRB 2600-12/1.85 | 0.04mm | 0.16mm | ||||
Technical information
| Electrical Connections | |
| Supply voltage | 200-600V,50/60 Hz |
| Energy consumption | 3.4kw |
| Physical | |
| Robot base | 676x511mm |
| Robot height | |
| IRB 2600-20/1.65 | 1382mm |
| IRB 2600-12/1.65 | 1382mm |
| IRB 2600-12/1.85 | 1582mm |
| Robot weight | |
| IRB 2600-20/1.65 | 272kg |
| IRB 2600-12/1.65 | 272kg |
| IRB 2600-12/1.85 | 284kg |
| Environment | |
| Ambinet temperature for mechanical unit | |
| During operation | +5°C(41°F)up to +50°C(122°F) |
| During transportation and storage | -25°C(13°F)up to +55°C(131°F) |
| During short periods(max.24h) | up to +70°C(158°F) |
| Relative humidity | Max.95％ |
| Noise level |
Max.69dB(A) IRB 2600-12/1.85 |
| Safety | Double circuits with supervision, emergency stops and safety functions 3-positions enable device |
| Emission | EMC/EMI shielded |
| Options |
Foundry Plus 2 |
Company Profile
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
