| MOQ: | 1 set |
| Price: | US $40245.00 - 51745.00/ Set |

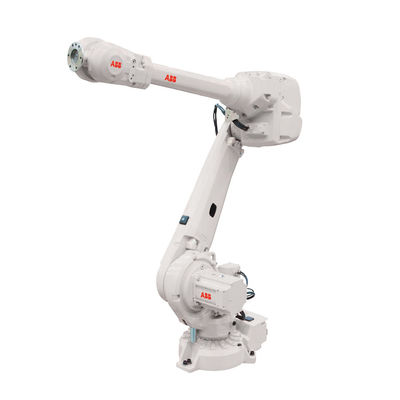

| Standard Packaging: | ONE ABB large industrial total station robotic 6 axis IRB4600-45/2.05 material handling machine packing with fumigation wooden frame, Total WG:850KG(>VG) |
| Delivery Period: | 30-60 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 pieces per month |
Specification
| Robot version | Reach(m) | Payload(kg) | Armload(kg) |
| IRB 4600-60/2.05 | 2.05 | 60 | 20 |
| IRB 4600-45/2.05 | 2.05 | 45 | 20 |
| IRB 4600-40/2.55 | 2.55 | 40 | 20 |
| IRB 4600-20/2.50 | 2.51 | 20 | 11 |
| Number of axes | 6+3 external(up to 36 with MultiMove0 | ||
| Protection | Standard IP67,as option Foundry Plus 2 | ||
| Mounting | Floor,shelf,inverted or tilted | ||
| Controller | IRC5 Single cabinet | ||
Performance(according to ISO 9283)
| Robot version | Position repeatability | Path repeatability |
| IRB 4600-60/2.05 | 0.06mm | 0.46mm |
| IRB 4600-45/2.05 | 0.05mm | 0.13mm |
| IRB 4600-40/2.55 | 0.06mm | 0.28mm |
| IRB 4600-20/2.50 | 0.05mm | 0.17mm |
Technical information
| Electrical Connections | |
| Supply voltage | 200-600V,50-60Hz |
| Physical | |
| Robot base | 512x676mm |
| Height | |
| IRB 4600-60/2.05 | 1727mm |
| IRB 4600-45/2.05 | 1727mm |
| IRB 4600-40/2.55 | 1922mm |
| IRB 4600-20/2.50 | 1922mm |
| Robot weight | |
| IRB 4600-60/2.05 | 425kg |
| IRB 4600-45/2.05 | 425kg |
| IRB 4600-40/2.55 | 435kg |
| IRB 4600-20/2.50 | 412kg |
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
