| MOQ: | 1 set |
| Price: | US $21823.00 - 22735.00/ Set |
| Standard Packaging: | ONE ABB large industrial total station robotic 6 axis ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding Robot and Payload 150Kg Reach 3200mm packing with fumigation wooden frame, Total WG:1700KG(>VG) |
| Delivery Period: | 30-60 work days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 100 sets/Month |

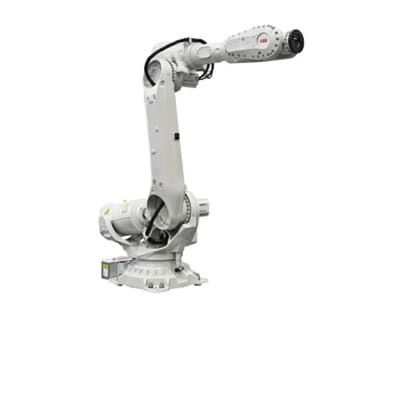

ABB IRB6700 6 Axis Industrial Robot Arm for Material Picking and Placing
Specification
| Robot version | Reach(m) | Handling capacity(kg) | Center of gravity(kg) | Wrist torque(Nm) |
| Without LeanID | ||||
| IRB 6700-200/2.60 | 2.60 | 200 | 300 | 981 |
| IRB 6700-155/2.85 | 2.85 | 155 | 300 | 927 |
| IRB 6700-150/3.20 | 3.20 | 150 | 300 | 1135 |
| IRB 6700-300/2.70 | 2.70 | 300 | 300 | 1825 |
| Without LeanID | ||||
| IRB 6700-200/2.60 | 2.60 | 175 | 300 | 981 |
| IRB 6700-155/2.85 | 2.85 | 140 | 300 | 927 |
| IRB 6700-150/3.20 | 3.20 | 145 | 300 | 1135 |
| IRB 6700-300/2.70 | 2.70 | 270 | 300 | 1825 |
| Number of axes 6 | ||||
| Protection | Std:IP67.Option:Foundry Plus 2 | |||
| Mounting | Floor,inverted | |||
| Controller |
IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller |
|||
Performance(according to ISO 9283)
|
Position repeatability |
Path repeatability |
|
| IRB 6700-200/2.60 | 0.05mm | 0.10mm |
| IRB 6700-155/2.85 | 0.10mm | 0.15mm |
| IRB 6700-150/3.20 | 0.10mm | 0.15mm |
| IRB 6700-300/2.70 | 0.10mm | 0.15mm |
Technical information
| Electrical Connections | ||
| Supply voltage | 200-600 V,50/60 Hz | |
| Energy consumption | 2.8KW | |
| Physical | ||
| Robot base | 1004x720 mm | |
| Robot weight(without Dress Pack) | ||
| IRB 6700-200/2.60 | 1250kg | |
| IRB 6700-155/2.85 | 1260kg | |
| IRB 6700-150/3.20 | 1280kg | |
| IRB 6700-300/2.70 | 1525kg | |
Company Information
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
