| MOQ: | 1 set |
| Standard Packaging: | One High quality KF193 industrial robot spray painting line car painting robot for plastic parts, metal parts, car parts packing with brown box, WG: 120 KG |
| Delivery Period: | 7 working days after deposit |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 50 sets /Month |

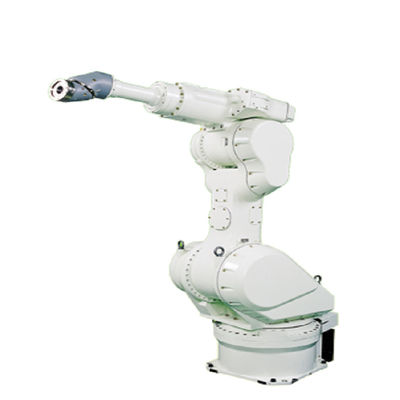

High quality KF193 industrial robot spray painting line car
painting robot for plastic parts, metal parts, car parts
Specification
| Product name | High quality KF193 industrial robot spray painting line car painting robot for plastic parts, metal parts, car parts | ||
| Type | Articulated Robot | ||
| Wrist Type | 3Rø40 | ||
| Degrees of Freedom (axes) | 6 | ||
| Payload (kg) | Wrist:12 Arm:20 | ||
| Max. Reach (mm) | 1,973 | ||
| Positional Repeatability (mm) | ±0.5 | ||
| Motion Range (°) | Arm Rotation (JT1) | ±150 | |
| Arm Out-in (JT2) | +110 - −60 | ||
| Arm Up-down (JT3) | +90 - −80 | ||
| Wrist Swivel (JT4) | ±720 | ||
| Wrist Bend (JT5) | ±720 | ||
| Wrist Twist (JT6) | ±410 | ||
| Allowable Moment (N•m) | Wrist Swivel (JT4) | 33.1 | |
| Wrist Bend (JT5) | 26.7 | ||
| Wrist Twist (JT6) | 7.9 | ||
| Allowable Moment of Inertia (kg•m2) | Wrist Swivel (JT4) | 1.27 | |
| Wrist Bend (JT5) | 0.82 | ||
| Wrist Twist (JT6) | 0.1 | ||
| Mass (kg) | 720 | ||
| Mounting | Floor, Wall | ||
| Installation Environment | Ambient Temperature (°C) | 0 - 40 | |
| Relative Humidity (%) | 35 - 85 (No dew, nor frost allowed) | ||
| Power Requirements (kVA) | 5 | ||
| Controller / Power Requirements (kVA) | America | - | |
| Europe | E45 / 7.3 | ||
| Japan & Asia | E25 / 10 | ||
| Painting Speed (m/s) | 1.2 | ||
| Explosion-proof Construction | America | - | |
| Canada | - | ||
| Europe, China, Korea | Combination of pressurized type and intrinsically safety type (Ⅱ2G Expxib ⅡB T4 / Exib ⅡB T4) | ||
| Japan & Asia | Combination of pressurized type and intrinsically safety type (Expib ⅡB T4 / Exib ⅡB T4) | ||
Product Information
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
Video
Video
|
|
