Welding Collaborative Robot Arm Igus Ur - Clamp Secure Cable Guidance Accessories
  • name
  • name
  • name

Welding Collaborative Robot Arm Igus Ur - Clamp Secure Cable Guidance Accessories

MOQ: 1 Set/Sets
Price: Negotiation
Standard Packaging: Packing type: cardboard box/non-fumigation wooden box
Supply Capacity: 100 Set/Sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Denmark
Brand Name
IGUS GMBH
Condition:
New
Application:
Welding
Warranty:
1 Year
Product Name:
IGUS UR-CLAMP
Compatibility:
UR3, UR5, UR10 UR3e
Dimensions:
See Below
Port:
Shanghai Port
Minimum Order Quantity:
1 Set/Sets
Price:
Negotiation
Packaging Details:
Packing type: cardboard box/non-fumigation wooden box
Supply Ability:
100 Set/Sets per Month
Highlight:

universal collaborative robot

,

multi axis robotic arm

Product Description



UNIVERSAL ROBOT ACCESSORIES IGUS UR-CLAMP SECURE CABLE GUIDANCE

Introduction

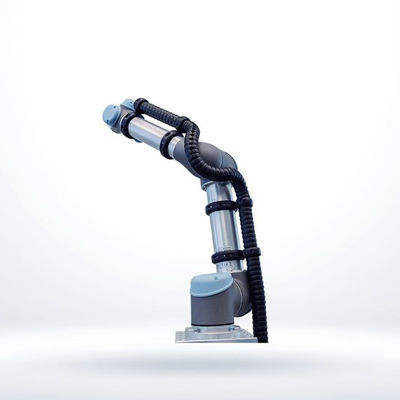

  • The igus® triflex® R system guides cables and hoses secure along the UR Robot
  • Guidance via synthetic clamps and energy chains around the arms of the UR Robot

Features and Benefits

  • Easy and fast installation
  • Modular system – easy to shorten and lengthen
  • Cable guidance with minimum bending radius and minimum torsion angle
  • Easy and fast filling with harnessed cables (connectors) from outside (TRE, TRL)
  • Two or three chambers for separating cables and hoses

  • Dimensions:

    UR3/UR3e

    • TR.916.810.054
      • 30mm width,
      • 130,5mm height,
      • Ø 54mm
    • TR.916.810.066
      • 30mm width,
      • 142,5mm height,
      • Ø 66mm

    UR5

    • TR.916.810.075
      • 30mm width,
      • 152mm height,
      • Ø 75mm
    • TR.916.810.086
      • 30mm width,
      • 162,5mm height,
      • Ø 86mm

    UR10

    • TR.916.810.086
      • 30mm width,
      • 162,5mm height,
      • Ø 86mm
    • TR.916.810.108
      • 30mm width,
      • 185mm height,
      • Ø 108mm

How does it work

  • New guidance of the triflex® R System with the use of protectors and synthetic clamps for all UR Robots.
  • Easy mounting of the NEW synthetic clamps with integrated screws for an elegant guiding energy system without any interfering contours

 Applications

• Gluing, Dispensing, and Welding

Welding Collaborative Robot Arm Igus Ur - Clamp Secure Cable Guidance Accessories 0Welding Collaborative Robot Arm Igus Ur - Clamp Secure Cable Guidance Accessories 1
