| MOQ: | 1 |
| Standard Packaging: | cartons |
| Delivery Period: | 15 days |
| Payment Method: | L/C, D/A, D/P, T/T |
| Supply Capacity: | 999 set /month |

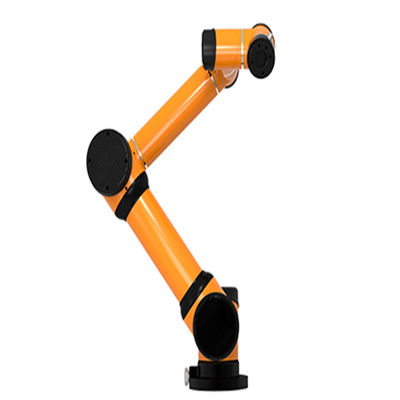

Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china
Main Specifications:
Maximum reach:924.5 mm
Maximum payload:5 kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
| Product Name | Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china |
| Application | Collaborative 6 axis industrial robot arm Aubo i5 low cost industrial robot and welding robot china; 6 axis industrial robot arm ;low cost industrial robot ;welding robot china; |
| Model | Aubo i5 |
| Robot Arm | |
| Maximum reach | 924.5 mm |
| Maximum payload | 5 kg |
| Pose repeatability (ISO 9283) | ± 0.02 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Lifetime | 30000h |
| Weight | 24 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 200W |
| Material | Aluminum alloy |
| Ambient temperature | 0-45°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±175° |
| A2 | ±175° |
| A3 | ±175° |
| A4 | ±175° |
| A5 | ±175° |
| A6 | ±175° |
| Controller | |
| Size | 727mm*623mm*235mm |
| Weight | 20Kg |
| Cable length | 5m |
| Colour | Black |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP54 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 4m |
| Protection rating | IP54 |
| Colour | Orange+black |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
More products
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
|
|
