| MOQ: | 1 set |
| Price: | USD 20000/set |
| Standard Packaging: | One 7 axis industrial robotic arm KR810 collaborative robot for kossow robot with robotiq gripper packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG |
| Delivery Period: | 7 working days after deposit |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 50 sets /Month |

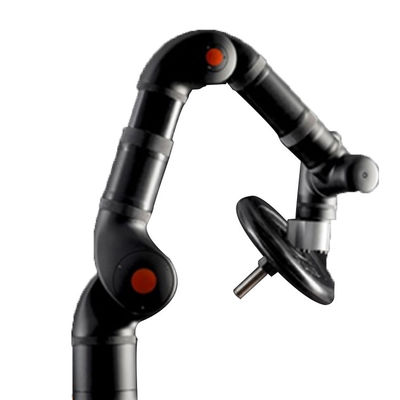

7 axis industrial robotic arm KR810 collaborative robot for kossow
robot with robotiq gripper
Specification
| General specifications | KR 810 |
| Reach (mm) | 850 |
| Payload (kg) | 10 |
| Weight (kg) | 24 |
| Joint Speed (deg / sec) | 225 |
| Joint Ranges | J2 and J4: -70°/+180°. J1, J3, J5, J6 and J7: ±360° |
| Brakes on joints | Yes |
| Absolute encoders on joints | Yes |
| Repeatability (mm) | +/- 0.1 |
| Degrees of freedom | 7 |
| Foot print (mm) | 130x130 |
| Operating temperature (C°) | 0-45 |
| Body material | Anodized aluminum |
| Safety | KR 810 |
| Protection rating | IP54 |
| Work without shielding | Yes* |
| Impact control | Yes |
| 150N safe force limit on tool | Yes |
| Controller I/O | KR 810 |
| Digital outputs 24V (pcs) | 8 |
| Relay outputs (pcs) | 4 |
| Digital inputs 3-30V (pcs) | 16 |
| Analogue I/O 0-10V (pcs) | 2/2 |
| Analogue I/O 4-20mA (pcs) | 2/2 |
Company Information
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
|
|
