| MOQ: | 1 set |
| Standard Packaging: | One HAN'S Green light YAG laser welder PG3 for Copper, aluminum, gold, silver laser welding machines packing with brown box, WG: 120 KG |
| Delivery Period: | 7 working days after deposit |
| Payment Method: | T/T, L/C, Western Union |
| Supply Capacity: | 50 sets /Month |

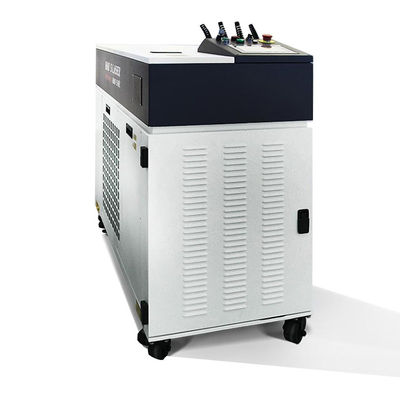

HAN'S Green light YAG laser welder PG3 for Copper,
aluminum, gold, silver laser welding machines
Specification
| Laser model | PG3 |
| Laser type | YAG |
| Laser wavelength | 532nm |
| Laser output average power | 3W |
| Max. laser peak power | 1kW |
| Max. laser pulse energy | 3J |
| Pulse width | ≤5ms |
| Pulse frequency | ≤10Hz |
| Waveform number | 50 groups |
| Fiber output number | 1 path |
| Beam split mode | ------ |
| Fiber core diameter | 0.2mm |
| Closed-loop feedback control mode | Laser power feedback |
| Aiming positioning mode | Red light guide (CCD and monitor are optional) |
| Cooling mode | Internal air cooling |
| Main machine power consumption | 5kW |
| Power demand (voltage, frequency and current) | 220V±10%/50Hz/25A |
| Main machine weight | 350kg |
| Main machine dimension | 1280x550x1165mm |
Product Description
Company Information
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
|
|
