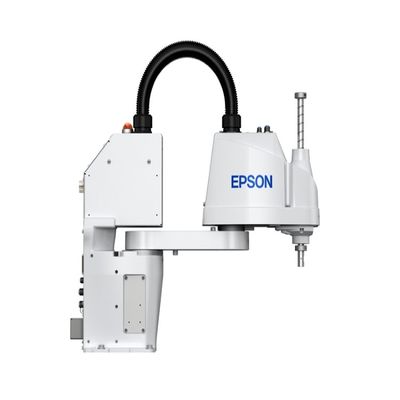

EPSON T3 Compact SCARA Industrial Robot 3kg Load For Pick & Place
  • name
  • name
  • name
  • name

EPSON T3 Compact SCARA Industrial Robot 3kg Load For Pick & Place

MOQ: 99
Delivery Period: 2 months
Payment Method: L/C, T/T
Supply Capacity: 99
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
EPSON
Certification
CE
Model Number
T3
Installation Type:
Desktop
Arm Length (J1 + 2):
400 Mm
Body Weight:
16 Kg
Max Loading:
3kg
Rated Loading:
1kg
Standard Cycle Time:
0.54s
The Pressure Of J3:
83N
Power Supply:
AC100-240V
Applicable Controller:
Inside The Noumenon
Installation Environment:
Standard Type
Minimum Order Quantity:
99
Delivery Time:
2 months
Payment Terms:
L/C, T/T
Supply Ability:
99
Highlight:

pick place SCARA Industrial Robot

,

3kg SCARA Industrial Robot

,

EPSON T3 Compact SCARA Industrial Robot

Product Description

Controller Free Easier To Use And More Cost-Effective T3 Compact SCARA Agv Industrial Robot Arm

Product name

T3-401S
Installation type Desktop
Arm length (J1 + 2) 400 mm
Body weight (excluding cable) 16 kg
Maximum range of motion joint 1 ± 132°
joint 2 ± 150°
joint 3 150 mm
joint 4 ± 360°
Repeat positioning accuracy joint 1-2 ± 0.04 mm
joint 3 ± 0.02 mm
joint 4 ± 0.02°
Load*1 Rated 1 kg
Max 3 kg
Standard cycle time*2 0.54s

Allowable moment of inertia

of the fourth joint *3

 Rating 0.003 kg·m2
maximum 0.01 kg·m2
The pressure of J3 83 N
User line interface Hand I/O: IN6/OUT4(D-sub 15pin), User I/O:IN18/OUT 12
User gas interface ø6 mm x 2, ø4mm x 1 : 0.59 MPa (6 kgf/cm2 : 86 psi)
Power supply / cable length AC100-240V / 5m
Applicable controller Inside the noumenon
Installation environment Standard type
Safety standards CE certification



Epson recently launched the T3 compact SCARA robot, which is easier to use and more
cost-effective. The robot broke the concept of traditional SCARA robot of Epson, and
completely updated the design concept of external structure. From then on, T3 opened
a new era of controller free. Due to the built-in design of the controller, there is no need
to deal with complex wiring problems in the process of setup and maintenance, which
greatly improves the cost efficiency and keeps the total operating cost low.With the
advantages of economy and cost-effectiveness, T3 robot has become an ideal
solution to realize the automation of simple manual operation or to replace the multi
unit and single axis module with complex configuration.




Compared with the traditional Epson SCARA robot, T3 compact SCARA all-in-one
machine has the following three obvious advantages:
Compact structure, easy to install!
Built in SCARA controller
The built-in controller can reduce the requirement of installation space and greatly
simplify the process of initial installation and reconfiguration.
Easy wiring!
Simple I / O and short cable duct
The I / O port is next to the end of the arm for easy wiring. In addition, the short conduit
design simplifies external wiring.
No battery, easy maintenance!
Battery free motor unit
The motor unit does not need batteries, and can still keep the origin position data in the
memory, thus saving the trouble of replacing batteries. With these advantages, T3 can
not only help customers easily realize the automation of handling, but also help customers
greatly reduce the total cost. In short, the more you use, the more you will save.
Instead of manual operation, it is easy and efficient to realize
simple handling automation
Epson T3 robot can realize the automation of simple manual operation with lower cost,
without expanding or replacing the existing workspace, and it is very simple to maintain.
With greater efficiency, T3 robot is cutting costs every day - the longer you use it, the
more you will save.
Lower total cost than single axis module
Although the initial cost of installing single axis modules may be low, the complexity
and long-term cost of subsequent setup and maintenance of multiple single axis
modules and related wiring will increase rapidly. In addition, the single axis module
needs more installation space, resulting in the need for larger work units, reducing the
overall usable area of the factory. On the other hand, T3 robot is easy to install and has
high flexibility, which is suitable for various tasks. At the same time, T3 covers a small
area, improves productivity and reduces the overall cost.

EPSON T3 Compact SCARA Industrial Robot 3kg Load For Pick & Place 0
