| MOQ: | 1 |
| Delivery Period: | 2 months |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 99 |

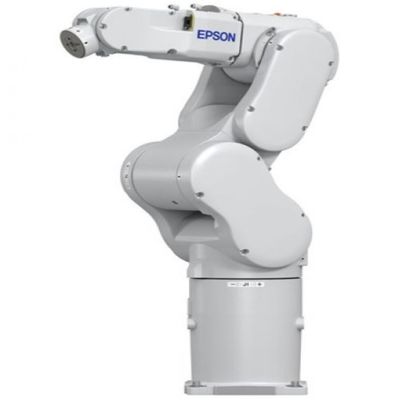

Based on the successful experience of C4 robot, Epson C8 robot maintains the key slim linear design and C4 robot's
high performance, high load and larger operating distance. It is suitable for different applications requiring high flexibility,
high speed and small floor area. Epson C8 compact 6-axis robot uses power driven servo technology to achieve the
high performance results expected by customers. In addition, using the advanced residual vibration technology, namely
Epson quartz micro electromechanical system, which can sense the angular velocity and feed it back to the servo motion
system, C8 robot can greatly reduce the vibration in the process of motion and start / stop The vibration makes the
movement more stable and the positioning faster.
High performance
Advantages of slim linear design
Leading edge controller and development software
| Model C8 | ||||||
Core specifications |
Repeat positioning accuracy: +/-0.02mm | |||||
| Load (kg): Max 8 / Rated 3 | ||||||
| Cycle time: 0.31 sec(1Kg Load) | ||||||
| Weight: 49 kg (53kg IP67) | ||||||
| Arm length | Horizontal working distance (to mounting surface): 791mm | |||||
| Horizontal working distance (to wrist Center): 711mm | ||||||
| Other arm length configuration | Installation type: Table, Ceiling | |||||
| Clean type and Antistatic type: ISO 3 and Antistatic | ||||||
| Protection type: IP67 rated | ||||||
| Subscriber line | Wire: 15 pin (D-sub connector) | |||||
| Ethernet: 8-pin RJ45 (class 5 or equivalent) | ||||||
| Guide force connection: guide force connector 6 pin (Future) | ||||||
| Air: 2 (6mm) | ||||||
| Environmental applicability | Temperature: 5- 40 ℃ | |||||
| Humidity: 10 - 80% (non condensing) | ||||||
| Safety standards | CE | |||||
| JIS B 8433 | ||||||
| ANSI/RIA R15.06-1999 | ||||||
| Mechanical instructions | EN ISO 12100-1,EN ISO 12100-2,EN ISO 10218, EN 60204-1,EN ISO 13849-1 |
|||||
| EMC directive | EN55011,EN61000-6-2 | |||||
| JIS B 8433-1 | ||||||
| CE | ||||||
| In line with KC mark | ||||||
| RoHS directive,REACH | ||||||
| Available controllers | RC700-A– PC driven high performance controller | |||||
| RC700DU-A- multi robot control drive unit | ||||||
| Range of motion | J1 (Steering): +/- 240° | |||||
| J2 (Lower Arm): -158to +65° | ||||||
| J3 (Upper Arm): -61 to +202° | ||||||
| J4 (Wrist Roll): +/-200° | ||||||
| J5 (Wrist Bend): +/-135° | ||||||
| J6 (Wrist Twist): +/-360° | ||||||
| Motor Wattage | J1: 1000 W | |||||
| J2: 750 W | ||||||
| J3: 400 W | ||||||
| J4: 100 W | ||||||
| J5: 100 W | ||||||
| J6: 100 W | ||||||
| Allowable moment of inertia | J4:0.47 kg•m2 | |||||
| J5:0.47 kg•m2 | ||||||
| J4:0.15 kg•m2 | ||||||
| Braking | All 6 axes | |||||
| Options | Visual guidance (CV2 or PV1) | |||||
| . Net support (Epson RC + 7.0 API) | ||||||
| Device network, Ethernet / IP, Fieldbus, EtherCAT, CC link | ||||||
| Belt tracking | ||||||
| GUI construction | ||||||
| Pressure sensing | ||||||
| Robot cable | 3M (Standard), 5m (Optional), 10m (Optional) | |||||
| Software | EPSON RC+ 7.0 | |||||
|
|
